Crankcase Relief Valve
Model
-
Series
Crankcase Relief Valve
Product Description

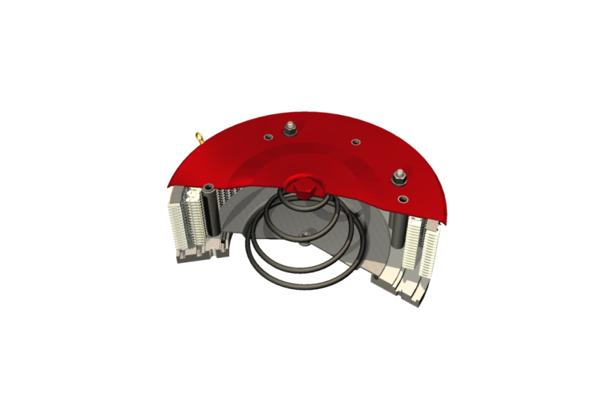

Structure
Function
<Crankcase relief valve's Function>
• Relief valves type HWG protect man and engine in the event of an explosion
• AS internal pressure of the MAIN ENGINE & GENERATOR have became more than 0.05bar, The disc is opened and the
excess pressure gas and flames were emitted.
• Relief valve disconnects oil & gas and prevents the emission of flames.
• Relief vavle returns oil disconnected to the inside crankcase
• Crankcase relief valve's Function
1. Crankcase relief valve protect man and engines in the event of an explosion of diesel engines. In the event of an explosion.
Relief valve opens immediately to protect the crankcase damage thus preventing a secondary explosion
2. Crankcase relief valve closes absolutely tight after explosion thus preventing oxygen or dirt to get entrained
into the crankcase.
Product Items
| Competition | |
|---|---|
| Separation | Dual Passage Structures enables excellent Flame disconnections & improved Cooling effects |
| Structure | Lamellar structures enables excellent Block, Stability and Safety Excellent durability to explosive pressure |
| Resistance | The protrusion of the Lamellar is inserted at the groove of the Seat to stop any movement even during explosion |
| Standard | Inner and outer lamella design applied for all ranges of Crankcase Relief Valves products |
| Strength | Strengthening the Disc stiffness and the Disc structure enabled Open Pressure to maintain even after a secondary explosion |
| Model | Outflow Area(㎠) | ØD1(mm) | ØD2(mm) | ØD(mm) | h(mm) | H(mm) | D(mm) | Mounting Bolt | P.C.D.(mm) | Approx. weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| HWG-735(H) | 3904 | 969 | 705 | 1008 | 288 | 318 | 425 | 12-M16 | 795 | 245 |
| HWG-645(H) | 2990 | 871 | 617 | 910 | 250 | 280 | 378 | 12-M16 | 700 | 190 |
| HWG-565(H) | 2299 | 784 | 541 | 823 | 222.5 | 252.5 | 335 | 12-M16 | 615 | 153 |
| HWG-480 | 1662 | 699 | 460 | 738 | 187 | 215 | 287 | 8-M16 | 530 | 117 |
| HWG-420 | 1257 | 636(605) | 400 | 678 | 167 | 191 | 251 | 8-M16 | 465 | 93 |
| HWG-345 | 830 | 556 | 325 | 595 | 147 | 164 | 214 | 6-M16 | 390 | 72 |
| HWG-320 | 731 | 510(605) | 305 | 547 | 137 | 154 | 197.5 | 6-M12 | 355 | 59 |
| HWG-266 | 499 | 418 | 252 | 435 | 101.3 | 109.9 | 170 | 6-M12 | 302 | 26 |
| HWG-224 | 346 | 371 | 210 | 392 | 89.3 | 96.6 | 142 | 6-M12 | 255 | 22 |
| HWG-204 | 284 | 351 | 190 | 367 | 79.3 | 86.6 | 132.5 | 6-M12 | 235 | 20 |
| HWG-173 | 201 | 319 | 160 | 335 | 70.8 | 77.8 | 115 | 6-M10 | 203 | 14 |
| HWG-162 | 177 | 306 | 150 | 322 | 64.3 | 71.3 | 107 | 6-M10 | 190.5 | 13 |
| HWG-122 | 95 | 262 | 110 | 278 | 55.3 | 61 | - | 6-M8 | 150 | 9 |
Eye bolts from HWG-345 Delivery scope does not include mounting bolts
(H) Means Hinged type explosion relief valve
Product List
Crankcase Relief Valve
