TAEIL M-TECH

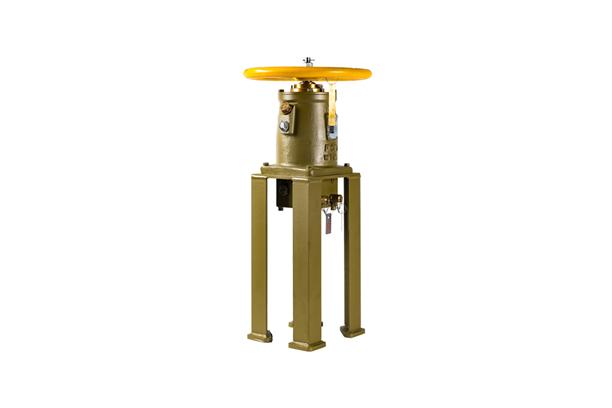

Hydraulic Transmitter (Deck Stand)
Model
THT-T1
THT-T2
THT-T3
THT-T4
Series
Marine Valves
Product Description
Description
The pump of transmitter inside is operated with press at specific part on hydraulic force when handle move clockwise and lift operation. Glove, Gate, SDNR, Butterfly, Ball valves are suitable at actuator operation and hydraulic transmitter remote control.
1. Installation is simple and not auxiliary power is required.
2. Handling is easy at large capacity occurring.
3. Suitable at difficult access of people.
4. No leakage with check valve of high faculty.
5. Safety function is equipped with its function.
Specification
| Model | THT-T1 | THT-T2 | THT-T3 | THT-T4 |
| Type | T1 | T2 | T3 | T4 |
| Discharge (cc/rev.) | 13 | 26 | 52 | 64 |
| Max operation pressure | 120kgf/㎠ | |||
| Open / Close pressure | 90 / 80 kgf/㎠ | |||
| Applicable temperature | -20~80℃ | |||
| Viscosity to hydraulic oil | Mineral Oil, ISO VG22~ 32 | |||
| Oil fill capacity (cc) | 1200 | 1250 | 1350 | 1400 |
| Accessories | ● Self seal coupling ● Lamp Box ● Manifold | |||
