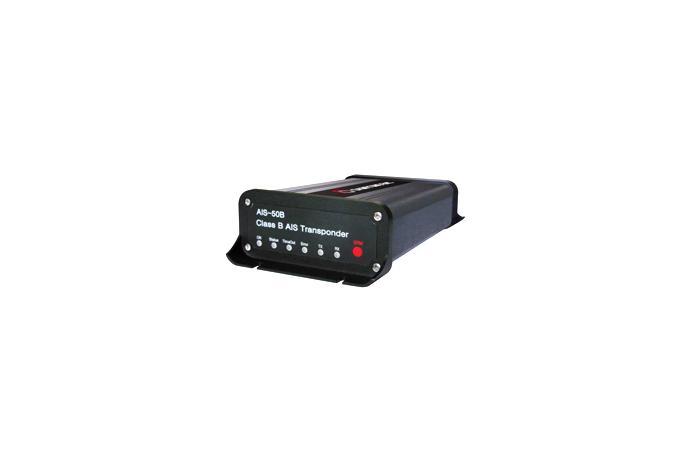

Class B AIS Transponder
Model
AIS-50B
Series
AIS
Product Description

Features

• Transfer data via AIS channel 87B(161.975MHz)&88B(162.025MHz)
• Dual baud rate 4800 or 38400
• RS-232,422 Input/Output Port
• Simple connection through RS-232, 422
• LED display for easy status check-up
• Enable to transceive SRM(Safety Related Message)



Specifications

• Frequency : 156.025MHz ~ 162.025MHz,Default channel 88B, AIS(162.025MHz), Default channel 87B, AIS(161.975MHz)

• Channel spacing : 25kHz

• VHF ANT connector : TNC

• GPS ANT connector : BNC

• Antenna impedence : 50Ω

• Frequency Stability rate : ±10PPM(-20℃ ~ +60℃)

• Data rate : 9600 bps

• Power supply : DC 12V~34V (DC 12V, 1.2A Max.)

• Operation temp : -15℃ ~ +55℃

• Output power : 2W(33dBm ± 1.5dB)

• Modulation : GMSK

• Sensitivity : -107dBm

• Adjacent channel : 70dB

• Cochannel : 10dB

• IMD : 65dB

• Blocking : 84dB
