SAM YANG METAL
Cap
Model
-
Series
Miscellaneous Fittings
Product Description

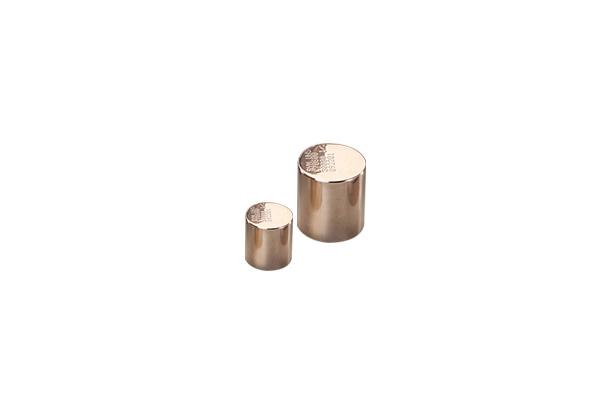

Threaded Type Cap
■ Material : EEMUA 146 7060X
Unit:mm
| N/D | Dimension | Remark | |||
|---|---|---|---|---|---|
| D | L | L1 | J (Min.) | ||
| NPT 1/2" | 29.0 | 32 | 6.5 | 13.5 | |
| NPT 3/4" | 35.0 | 37 | 6.5 | 14.0 | |
| NPT 1" | 44.0 | 38 | 10.0 | 17.5 | |
| NPT 1 1/4" | 57.0 | 41 | 10.0 | 18.0 | |
| NPT 1 1/2" | 64.0 | 41 | 12.0 | 18.5 | |
| NPT 2" | 76.0 | 42 | 13.0 | 19.0 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Extrude Bar
