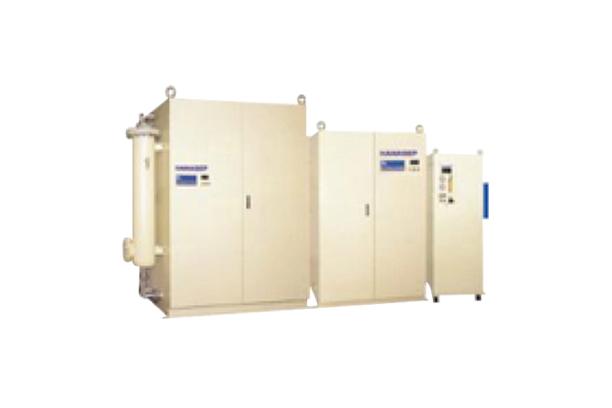

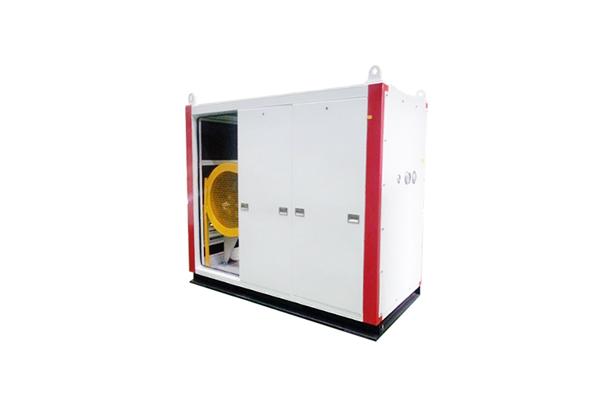

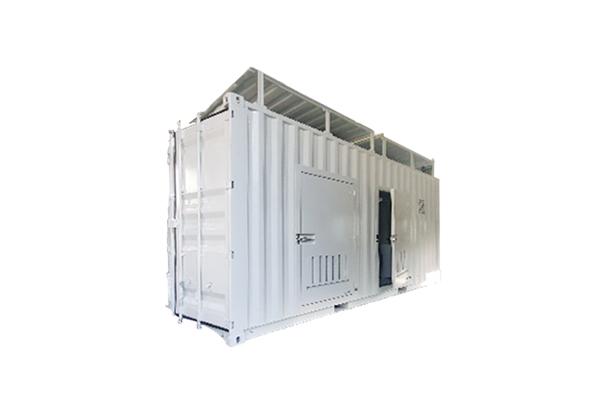

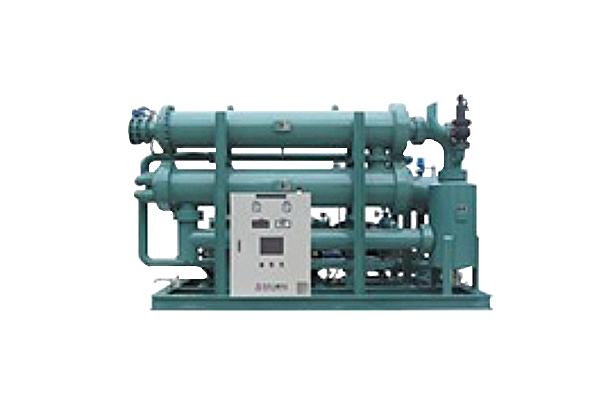

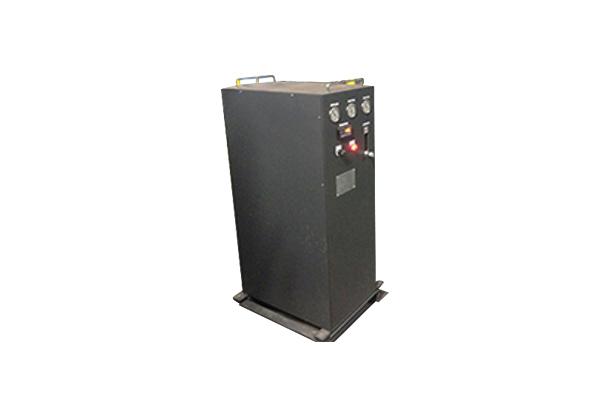

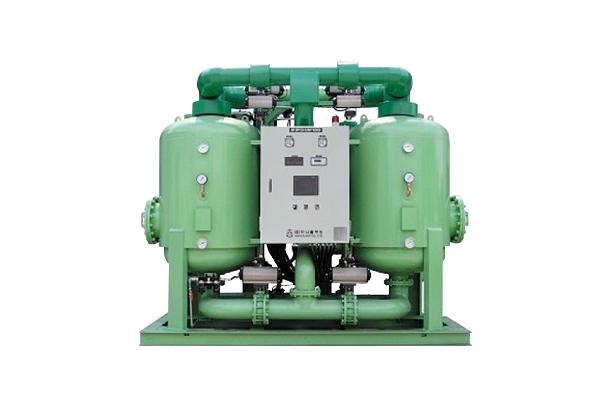

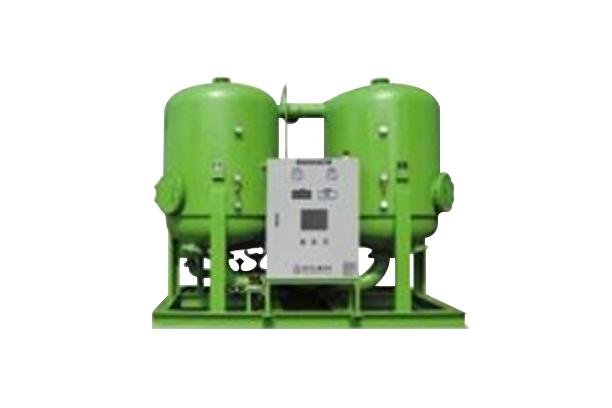

Air & Gas Dryer

It is possible to design a dryer that meets the customer's requirements and specifications, and the optimum specification can be selected through a variety of lineups.

Key Features

> Carbon steel/stainless steel for pressure vessel and piping
> PLC control based / microprocessor based control
> Redundant system compliance to SIL II and III requirements
> Suitable for ATEX, Zone 1 / Zone 2
> Thermal chat ambient temperature up to 65ºC
> Winter ambient temperature up to -50ºC
> Painting according to required specifications (external/internal)
> Pressure dew point according to ISO 8573
> SME or classification approval available
> Specific flow rates and dew points are available upon request.
> Accessories are included.
- Pre-filter and after-filter (single or double)
- Safety valve
- Pressure gauge
- Local control panel (suitable for field conditions)

Specifications

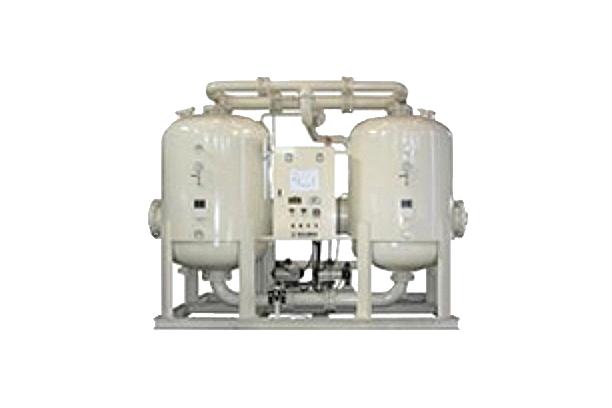

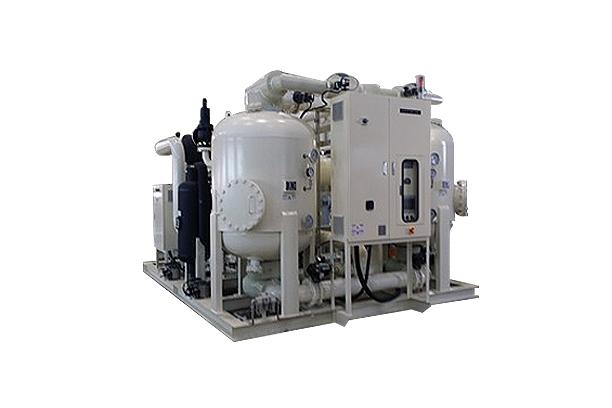

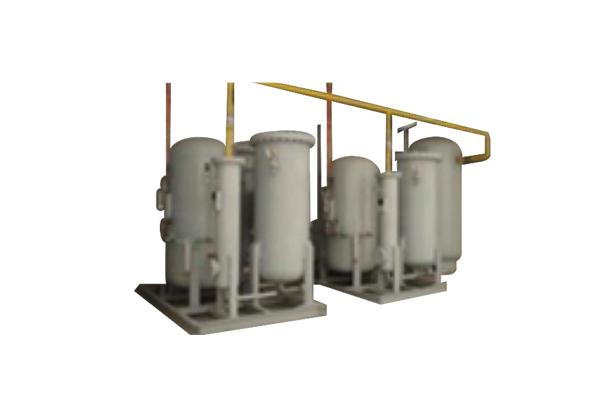

> Air dryer, adsorption air drying system

> Direct cooling type

> 2,000 ~ 30,000 SCMH (1,177.2 ~ 17,657.3 SCFM)

> Pressure dew point -4º (-40° F to -148° F)

> ISO compressed air purity class 4
