Hot Water Calorifier
Model
-
Series
Stationary
Product Description

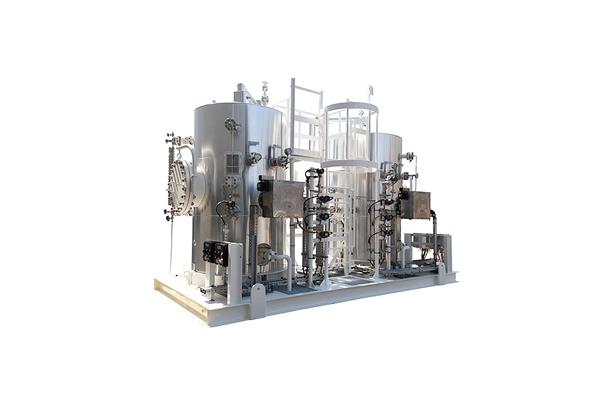

Hot Water Calorifier

A calorifier is stationary water heater that supplies hot water for showers, washing and other various utilities to the offshore living quarters. Firscomp offers custom designed hot water calorifers for the use both in Hazardous and Safe areas. All products are designed, manufactured and shop tested as per the specific project requirements. The entire skidded system is comprised of vessels, electrical heaters, interconnecting piping/valves, control panel and safety features for safe and stable operation.



Key Features

- Stainless steel for pressure vessel and piping
- PLC based UCP/LCP
- Redundant systems compliance to SIL II & III requirements ATEX suitable for Zone 1 / Zone 2
- Painting (external / internal) as per required specifications
- Thermal Insulation
- ASME or Classification approval
- Circulation pumps can be integrated in the complete package
- Integration of Electrical & Instrument components



Specifications

- Application : Portable water heating unit for Living Quarter of offshore platform

- Size : L x W x H (mm) : 5200L x 2500W x 4300H mm

- Ambient Temperature : 21.1 °C ~ 35.8 °C

- Design Temperature : 100°C

- Operating Temperature : 70°C

- Operating Discharge Pressure : 6.0 barg

- Flow Rate : 5 Nm3/hr

- Capacity per Vessel : 2.99 m3

- Applied Coating System : As per project specification of painting on stainless steel 316L vessels

- Heating Medium : Water

- Construction Feature : ASME SEC VIII DIV.1  2013 EDITION

- Heater Power : 400V / 50Hz / 3Phase, 180kW (per Vessel)

- Area Classification : Zone 2, Gas Group IIB, T3

- Local Control Station : IP 66, SS316 Enclosure
